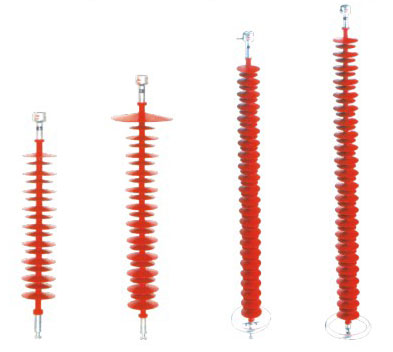

■ Especially applied in polluted districts with high mechanical pulling-stretching load, big span and compact lines
■ Small volume, high anti-twisting and strong anti-explosive

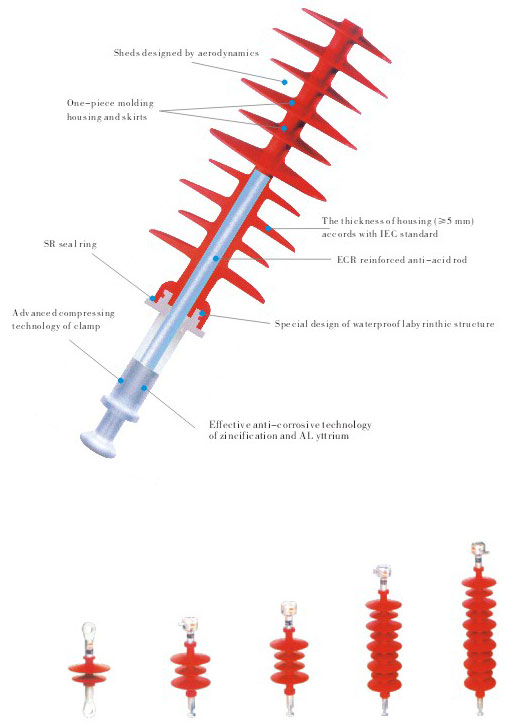

■ One-piece molding silicone rubber construction for lightness with longevity
■ Meet the strictest standard in the world---IEC 61109
| Essential Technical Data | ||||||||

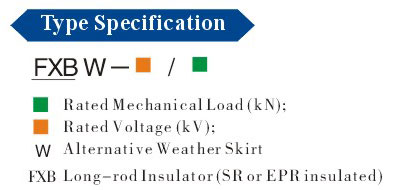

Types
|
Rated
Voltage |
|
Structure Height
(mm) |
Insulation
Distance (mm) |
Minimum Nominal
Creepage Distance (mm) |
Skirt
Parameter (mm/mm) |
Lightning
Impulse |
AC
Withstand Voltage (kV) |
FXBW-10/70
|
10
|
70
|
400
|
200
|
480
|
148/118
|
75
|
42
|
FXBW-10/100
|
10
|
100
|
400
|
200
|
480
|
148/118
|
75
|
42
|
FXBW-3570
|
35
|
70
|
650
|
450
|
1320
|
148/118
|
230
|
95
|
FXBW-35/100
|
35
|
100
|
720
|
520
|
1600
|
148/118
|
230
|
95
|
FXBW-66/70
|
66
|
70
|
900
|
710
|
2140
|
148/118
|
410
|
185
|
FXBW-66/100
|
66
|
100
|
940
|
710
|
2140
|
148/118
|
410
|
185
|
FXBW110/100
|
110
|
100
|
1240
|
1000
|
3315
|
148/118
|
550
|
230
|
FXBW-220/100 |
220 |
100 |
2150 |
1900 |
6300 |
148/118 |
1000 |
395 |
FXBW-220/160 |
220 |
160 |
2240 |
1900 |
6370 |
148/118 |
1000 |
395 |
FXBW-330/160 |
330 |
160 |
2990 |
2600 |
7095 |
148/118 |
1425 |
570 |
