      INTRODUCTION

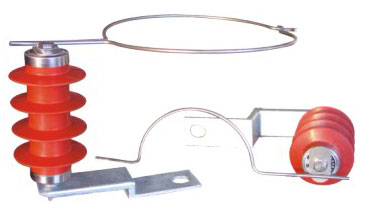

    Silicone Rubber Insulated Zinc Oxide Over-voltage Protectors for Over-head Distribution Lines
   and Aerial Insulated Cables Rated
Voltage from 1kV up to 35kV
   Features


 ■
  Effectively prevent over-head lines and insulators flashover or broken down
 ■   Superior water penetration protection from one-piece molding
 ■   Meet the strictest standard in the world---IEC 99-4
 ■   Elastic silicone rubber construction for lightness with longevity


   Applications

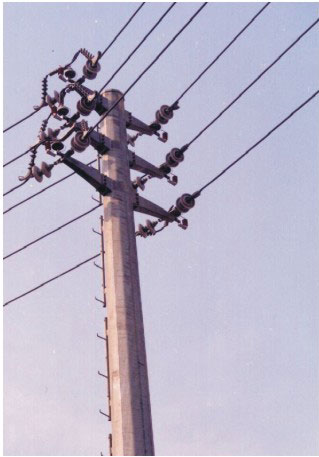

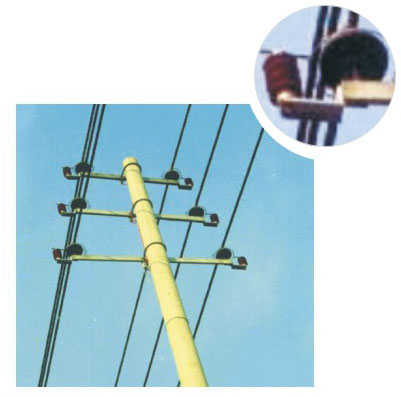

    Apply to over-head distribution lines and aerial insulated cables rated voltage from 1kV up to 35kV for preventing over--head lines operation safety from lighting over voltage, operating over voltage as well as over voltage flashover or broken--down.


     Essential Technical Data

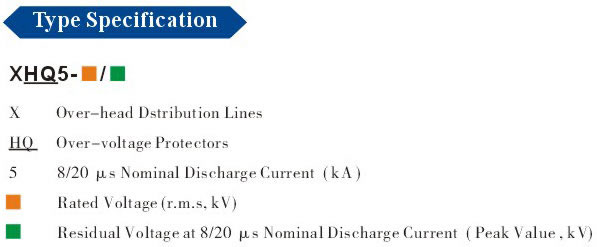

Type
Rated Voltage
U
[r.m.s,kV]
DC Reference
Voltage
at 1mA
U1mA
[≥,kV]
DC Leakage
Current
at 0.75U1mA
IL
[≤,μA]
8/20μs
Nominal
Discharge
Current
Id
[kA]

Residual
Voltage
at Id
Ur
[kV]
2000μs
Rectangular
Withstand
Current
[A]
Discharge Character of the Series Gap
(100¡À10mm)
Power
Frequency
Discharge
Voltage
[r.m.s, kV]
Front
Impulse
Discharge
Voltage
(Vp, kV)
12/50
Impulse
Discharge
Voltage
[Vp, kV]
XHQ5
12.7
≥18
≤30
5
≤36
≥100
about 50
about 200
about 110
