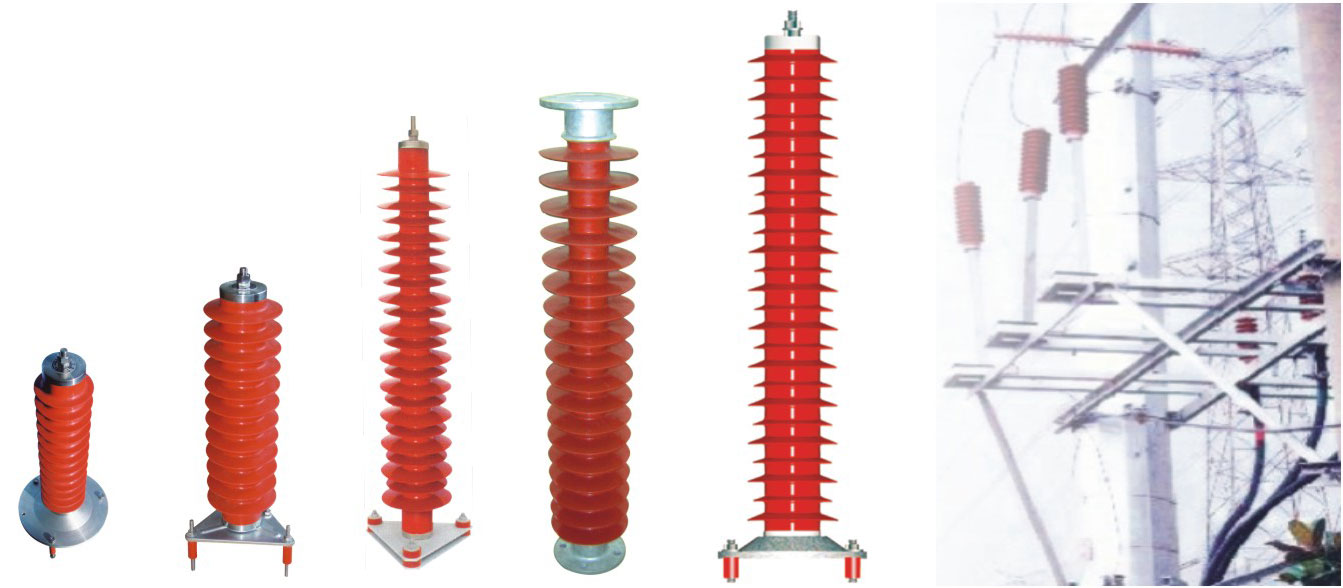

    Silicone Rubber Insulated Zinc Oxide Surge Arresters Applied to Transmission Systems Rated
    Voltage from 35kV up to 220kV


    Features
   Type Specifications
 ■     Effectively restrain system transient over-voltage
          level
 ■     Superior water penetration protection from one-
          piece molding
 ■     Meet the strictest standard in the world---IEC 99-4
 ■     Elastic silicone rubberconstruction for lightness with
          longevity
 ■     Excellent mechanical strength, exploding resistant          and  safe to environment
 ■     Not only used as surge arrester, but also used as
          post insulator at the same time


  Applicable Fields: Z for Substation   R for Electric Capacitor
                                        S for Distribution   G for Ring-main Unti
                                        D for Electric Generator and Motor    J for Neutral Grounding
                                        T for Electric Railway   X for Transmission Line

   Silicone Rubber Performance
Hardness
Shore A
Tear Strength
[kN/m]
Surface Contact Angle [ °]
Breankdown
Field
(MV/m)
Volume
Resistivity
[Ω·cm]
Anti-flaming
Performance
[Class]
Tracking
Resistance
[Class]
52±2
≥25
106
25
8.6×1015
FH1
1A4.5
     Essential Technical Data
Types
 Applica
-tions
Rated Voltage
U
[r.m.s,kV]
Continuous Operating
Voltage
Uc
[r.m.s,kV]
DC Reference  Voltage
at 1mA
U1mA
[≥,kV]
DC Leakage
Current at 0.75U1mA
IL
[≤,μA]
Residual Voltage
at 8/20μs Nominal
Discharge
Current
[≤,kV]
2000μs
Rectangular Withstand
Current
[≥,A]
4/10μs
Withstand Current
[≥,kA]
Partial
Discharge
[1.05Uc,pC]
[≤,pC]
YH5WZ-51/134
(130、125)
Substation
51
40.8
73.0
30
134
(130、125)
400
65
14.0
YH5WZ-52.7/134
(130、125)
Substation
52.7
42.2
73.0
30
134
(130、125)
400
65
14.0
YH5WZ-54/134
(130、125)
Substation
54
43.2
74.0
30
134
(130、125)
400
65-100
14.0
YH5WZ-84/224
Substation
84
67.2
121
50
224
400
65
14.0
YH5WZ-90/235
Substation
90
72.5
130
50
235
600
65
14.0
YH5WZ-96/250
Substation
96
75
140
50
250
600
65
14.0
YH5WZ-96/260
Substation
100
78
145
50
260
600
65
14.0
YH5WZ-108/281
Substation
108
84
157
50
281
600
65
14.0
YH10WZ-90/235
Substation
90
72.5
130
50
235
600
100
14.0
YH10WZ-96/232
Substation
96
75
134
50
232
600
100
14.0
YH10WZ-96/250
