INTRODUCTION
Page1

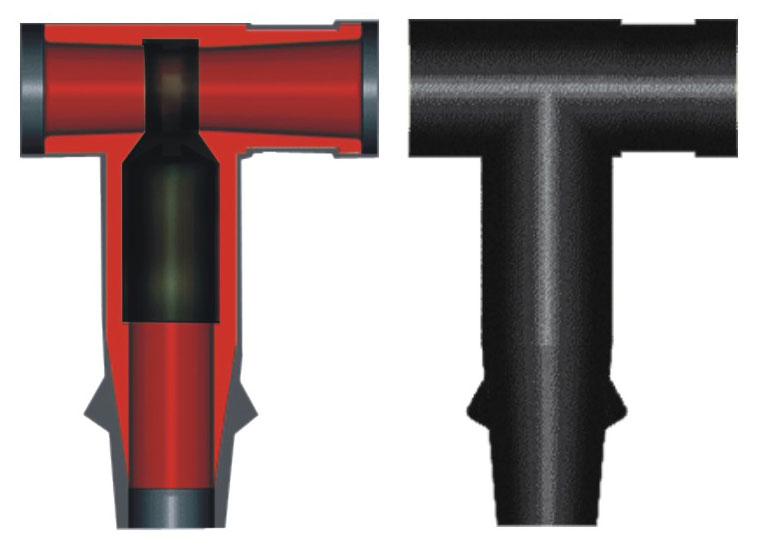

    630A/250A SR Separable Connector Series Rated Voltage from 15kV up to 35kV
    (Europe Style)
   Features

 ■ Dustproof, waterproof, corrosion resistant and maintenance-free
 ■ Meet the strictest standards in the world-IEC 60502
    and IEEE 386
 ■ Fault indicators help you find out faults quckily
 ■ Quick and easy to install and operating very reliably


  Essential Technical Data
Types
Rated Voltage
(kV)
Rated Current (A)
AC Withstand
(kV/5min)
 Partial Discharge (15kV/pC)
15kV/630A
Separable Connectors
15
630
≥39
≤2
15kV/250A
Separable Connectors
15
250
≥39
≤2


Impulse Voltage Test
(95℃กซ100℃）
±10 times

Heating Cycles
Voltage Test
Thermal Short-circuitTest
(kA/S)
Dynamic Short-circuitTest
(kA/S)
Conductor
Cross Section
(mm2)
No Breakdown
No Flashover
Passed
30/2
110/0.07
150-400
No Breakdown
No Flashover
Passed
16/1
40/0.3
25-120
