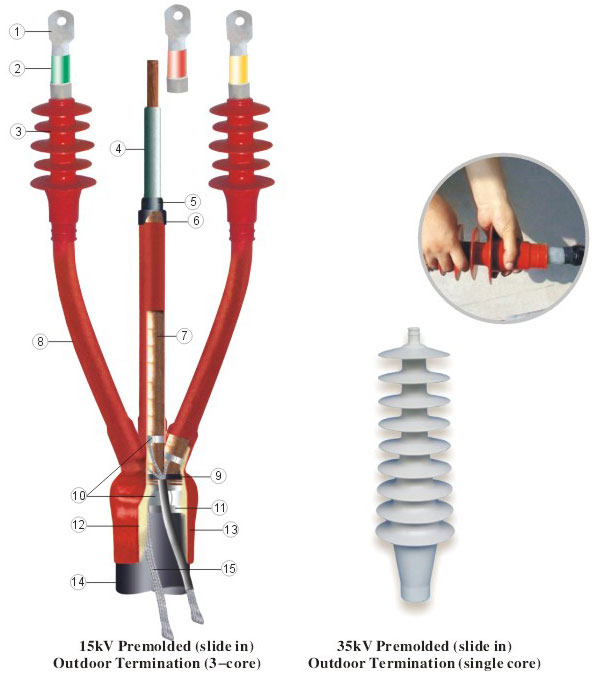

Silicone Rubber Premolded Outdoor Termination Series Rated Voltage from 6kV up to 35kV

1.Connector
2.Phase color tube
3.Silicone rubber premolded termination
4.Core insulation
5.Semi-conductive layer
6.Semi-conductive tape
7.Copper shield
8.Silicone rubber cold-shrinkable tube
9.Inner sleeve
10.Constant force spring
11.Cable armour
12.Filling and seal plasticene
13.Outer sheath
14.Cable(3-core)
15.Grounding conductor

Essential Technical Date
Type	AC Withstand VoltageTest [5min,kV]	Heating Cycles Test	Dynamic Short-cricuit Test [108.5kA,10ms]	Humidity Test [11kV,1000h]	Impulse Volatage Withstand under 100℃ [kV]	Partial Discharge Test under 100℃ [15kV,pC]
NYZ15	≥39	Passed	No Destruction	No Breakdown No Erosion	95,±10 times No Breakdown	≤2
Type	AC Withstand VoltageTest [5min,kV]	Heating Cycles Test	Dynamic Short-circuit Test [108.5kA,10ms]	Salt Fog Test [11kV,1000h]	Impulse Volatage Withstand under 100℃ [kV]	Partial Discharge Test under 100℃ [15kV,pC]
WYZ15	≥39	Passed	No Destruction	No Breakdown No Erosion	95,±10 times No Breakdown	≤2

Silicone Rubber Performance
Peeling Strength [Mpa]	Tear strength [kN/m]	Surface Contact Angle [ °]	Breakdown Field [MV/m]	Volume Resistivity [Ω.cm]	Permannent Deform Rate [%]	Tracking Resistance [Class]	Tensile Strength [Mpa]	Elongation at Break [%]	Hardness Shore A
≥3.6	25	109	25	7.8×10¹³	≤6	1A4.5	≥5	≥350	36±3
