INTRODUCTION
Page1

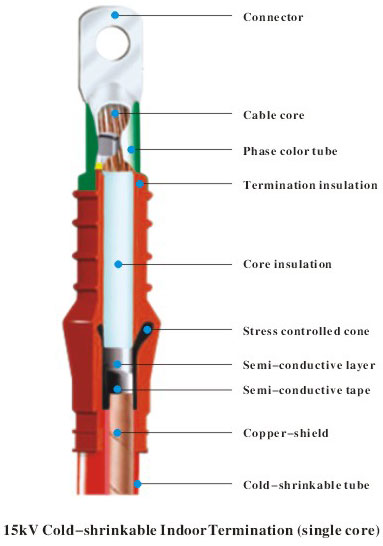

   Silicone Rubber Cold-shrinkable Indoor Termination Series Rated Voltage from 6kV up to 35kV
    Features


 ■      Meet the strictest standard in the world---IEC 60502
 ■      Quick and easy to install without special tool, heat or flame and special             training
 ■      Elastic silicone rubber construction for lightness with longevity
 ■      Excellent operating reliably and safe to environment

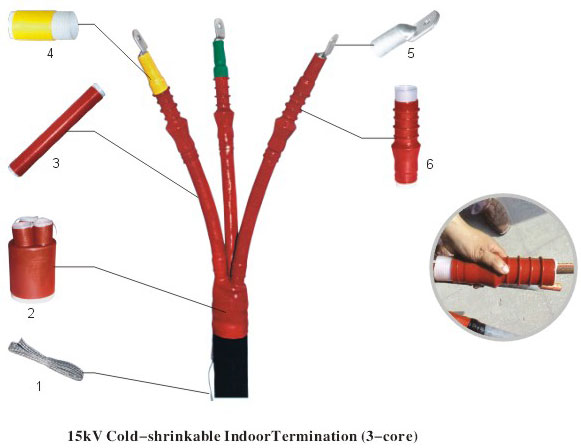

1.Grounding conductor
2.Silicone rubber cold-shrinkable space gloves
3.Silicone rubber cold-shrinkable insulation tube
4.Silicone rubber cold-shrinkable phase color tube
5.Connector
6.Silicone rubber cold-shrinkable indoor termination



    Applications
    Cold-shrinkable indoor terminaions are suitable for 6kV, 15kV and 35kV extruded dielectric power cable and successful operation under either climatic change causing water condensation on their surface or light industrial pollution service conditions.

Products
Types
Applicable Ranges
Outdoor Terminations
Outer Diameter of Cable Insulation Layer (mm)
  WLS15-3×25-50(mm2)
15-20.6
  WLS15-3×70-120(mm2)
19.6-25.4
  WLS15-3×150-240(mm2)
24.4-31

  WLS15-3×300-400(mm2)
30.6-37
Indoor Terminations

  NLS15-3×25-50(mm2)

15-20.6
  NLS15-3×70-120(mm2)
19.6-25.4

  NLS15-3×150-240(mm2)

24.4-31

  NLS15-3×300-400(mm2)

30.6-37
Joints

  JLS15-3×35-70(mm2)

16.6-22.5

  JLS15-3×95-150(mm2)
21.1-27

  JLS15-3×185-300(mm2)
26-33.5

  JLS15-3×400-630(mm2)

35.0-45.9
35kV Indoor Temination(single core)
